Surface mounting thermostat AMHs 2-80U+
The AMHs 2-80U + surface mounting thermostat consists of two separate measuring and switching systems in one thermostat housing. It works as a safety temperature limiter STL with manual reset and as a temperature monitor TM with automatic restart after hysteresis. In this way, the AMHs 2-80U + "monitors" the set temperature, switches the device off when the set temperature is exceeded and switches it on again automatically after it has gone through a hysteresis. The AMHs 2-80U + is TÜV tested according to DIN EN 14597 and encapsulated according to IP54. The temperature range of the TM is + 10 ° C to + 55 ° C that of the STL is fixed at 75 ° C.
Technical description
Function
The surface mounting thermostat works on the principle of liquid expansion. If the temperature changes in a liquid-filled sensor system - consisting of a sensor, capillary and membrane - the volume changes. The resulting stroke of the membrane actuates the microswitch by lifting. Only the temperature sensor is used to record the temperature.
Switching function (STL and TM)
If the temperature at the temperature sensor exceeds the set limit, the sensor plunger of the microswitch is relieved and the circuit is opened.
TM with automatic restart
If the value falls below the set limit (by the hysteresis), the microswitch is automatically returned to the starting position.
STL with mechanical lock and restart lock
When the set limit is exceeded, the circuit is opened and the microswitch is locked mechanically. After falling below the limit by approx. 10% of the temperature range, the microswitch can be unlocked by removing the cap nut by pressing the restart button.
Switching element

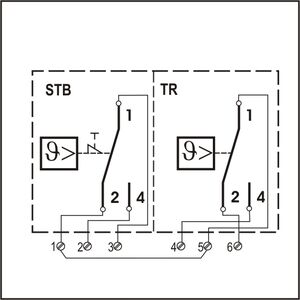

Encapsulated microswitch with single-pole changeover contact and restart lock (opens when the temperature rises) at STL. The TM has an encapsulated microswitch with a single-pole changeover contact.
Self-monitoring
The unbreakable thermostat (STL), with enhanced safety according to DIN EN 14579, opens the circuit when the measuring system is destroyed and remains mechanically locked in this position.
