Cartridge heaters

Volta heating cartridges are used for efficient heating of liquids. The electrical, individually configurable heating elements offer the advantage of optimal adaptation to the process conditions. The comparatively large wall thickness makes the heating cartridges particularly resistant under difficult operating conditions.

The cartridge heaters are available in the diameters 25mm, 35mm and 50mm in different lengths in various variations with individual tension, power, load and immersion depth.

Depending on the customer's needs, either model series can be defined individually or there is a design that is optimized for each project. The design at Volta is carried out according to the relevant framework conditions and process parameters.



Please do not hesitate.

Give us a call!

E-Mail info@volta.team
Telefon: +49 8385 - 921 393 0



Gallery

Medium
  • Water, various aqueous solutions, cleaning agents, heatingsystem water
  • Oil, hydraulic oil, heavy oil, lubricating oil, gear oil, thermal oil, heat transfer oil,
  • Air
Configuration according to customer reqirements
  • Power and connection voltage
  • Length and diameter
  • Resulting surface load depending on the application
  • Roll heating versions with retaining tab and centering pin
Diamenter and kW / length
Diameter mm Connection-flange / thread

Power maximal Watt

depending on Medium

25 Flange without thread 1-3 KW / m
35 1/2`` 3-6  KW / m

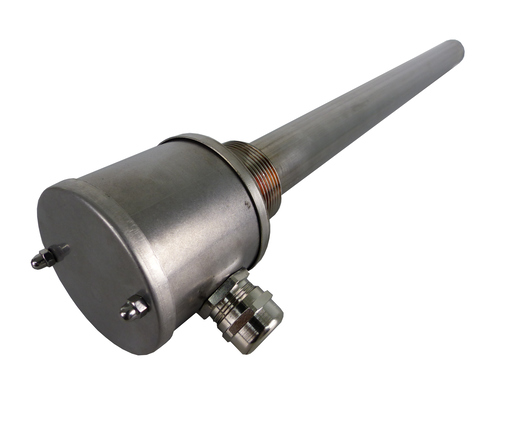

50 2`` 4-10 KW / m



Heating coil and ceramic
  • Heating coil made of highly heat-resistant resistance wire
  • Special insulation ceramics
  • Filled and compressed with MgO
Thermal isolation
  • Unheated area of ​​the heating cartridges with protective tube to the connection side in different lengths depending on the application and installation situation
  • When used for roller heating, project-specific unheated area at the beginning and end of the heating cartridge depending oh usage
Industry solutions and areas of application
  • Roof membrane production
  • Process engineering
  • Mechanical engineering
  • Cleaning systems
  • Tank and Buffer tank heating
  • Food industry
  • Environmental engineering
  • Plant engineering
Comparable products
  • Sectional heaters
  • Screw-in heating elements
  • Flange heaters
Alternative naming
  • Heating cartridge with protective tube
  • Heating element
  • Flange heater
  • Heating flange
  • Electric heating flange
  • Electric flange
